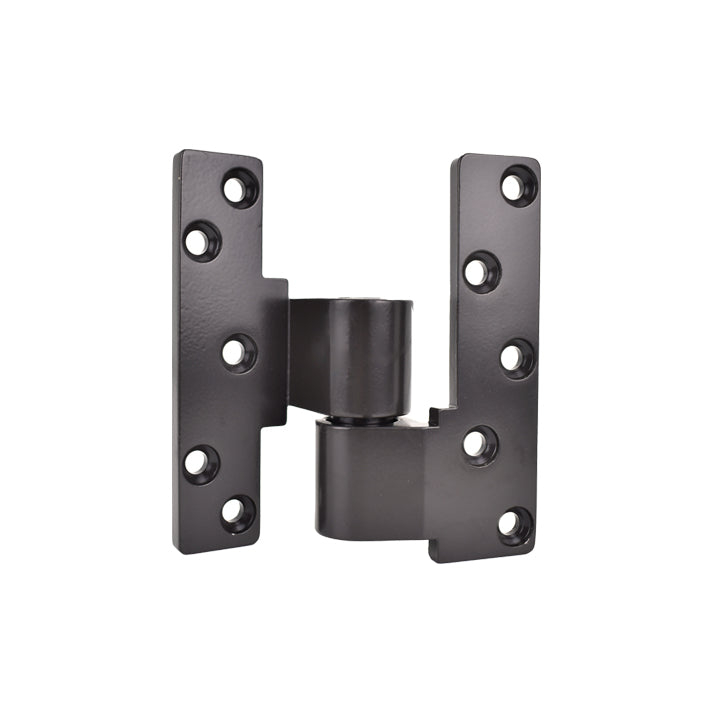

BHS Canada intermediate pivots are crafted to provide added support for taller doors, ensuring the middle part of the door stays aligned with the pivot hinges at the top and bottom. They are suitable for both flush face frame installations and 1/8" recessed door applications. Please note that these pivots are not compatible with center-hung doors. They are suitable for aluminum doors weighing up to 125 pounds for durability and easy installation.
Specifications:
¾" offset application for aluminum doors and frame
Precision aluminum die-cast construction
Doors up to 90" in height should use one intermediate pivot. An additional intermediate pivot is recommended for each additional 30 inches.
Full race ball bearing backed by an oilite bronze bushing in the door portion
Case-hardened pin in the jamb portion, fully retractable for easy installation
