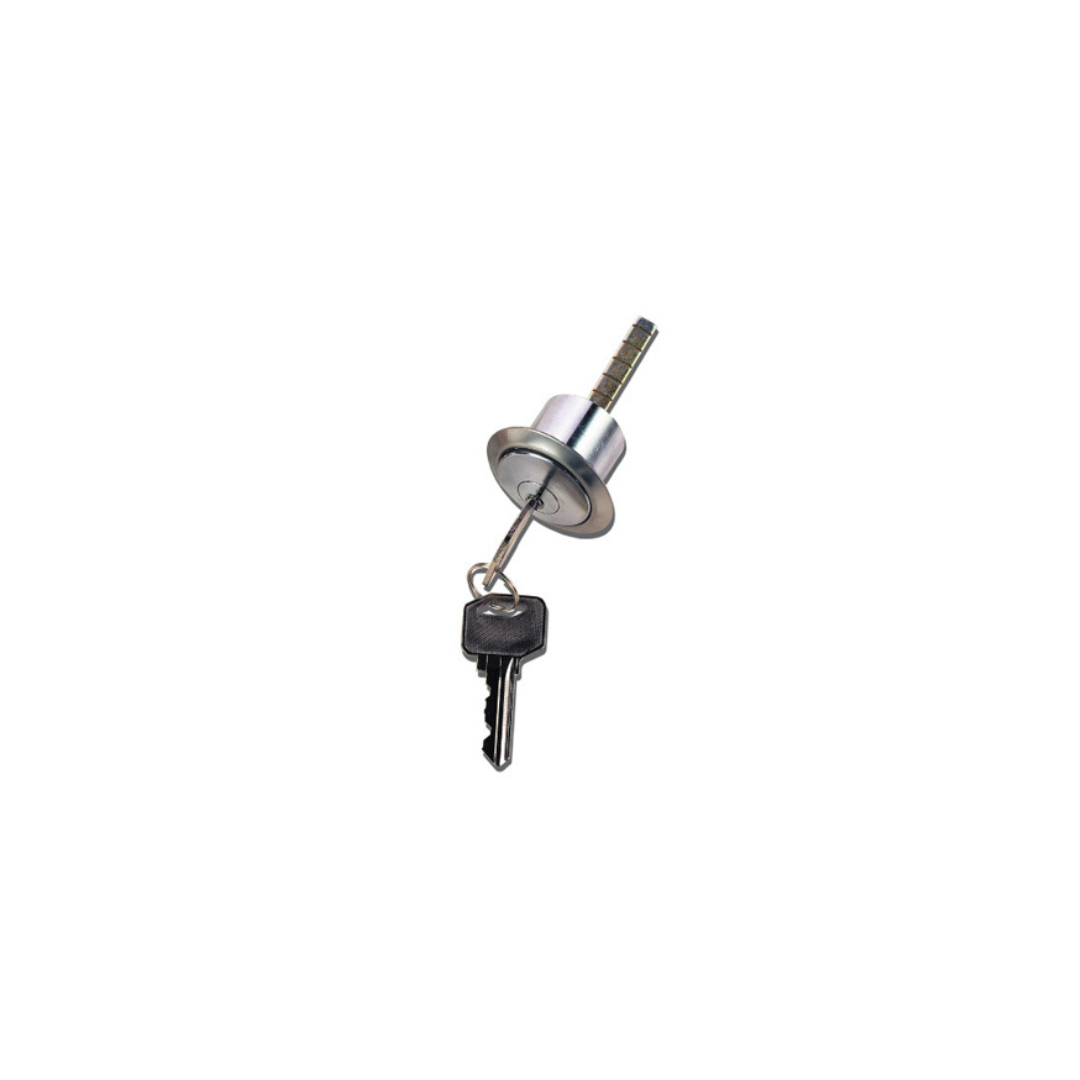

BHS Keyed Rim Cylinder Brass

 Specifications:

Type: Mortise or Rim
Key cylinders - 5 pin Schlage "C" keyway
TH1100 Series mortise cylinders SF-BC, SF-ZC, SF-BT, SF-ZT, SF-DUM
1" length - cam - MS A/R type, except DUM
TH1100-RC - Rim cylinder, flat cut to size tail piece - KD
Packed with collar ring, mounting plate, 2 screws, AL, DU

Key options specify when ordering:
For TH1100-SF-BC, SF-ZC
X1 - Keyed different
X1KA - Single cylinder keyed alike
X2 - Keyed alike in pairs



Finish:
Brass Cylinders - Keyed, Thumbturn: AL, DU, BL
Zinc Cylinder - Keyed, Thumbturn, Dummy: AL, DU

Cylinder Accessories:
SF-CG1 - Anti-wrench collar cylinder guard
SF-TR1 - Cylinder collar 5/16“, extruded solid
SF-TR2 - Cylinder collar 5/16“, stamped hollow
