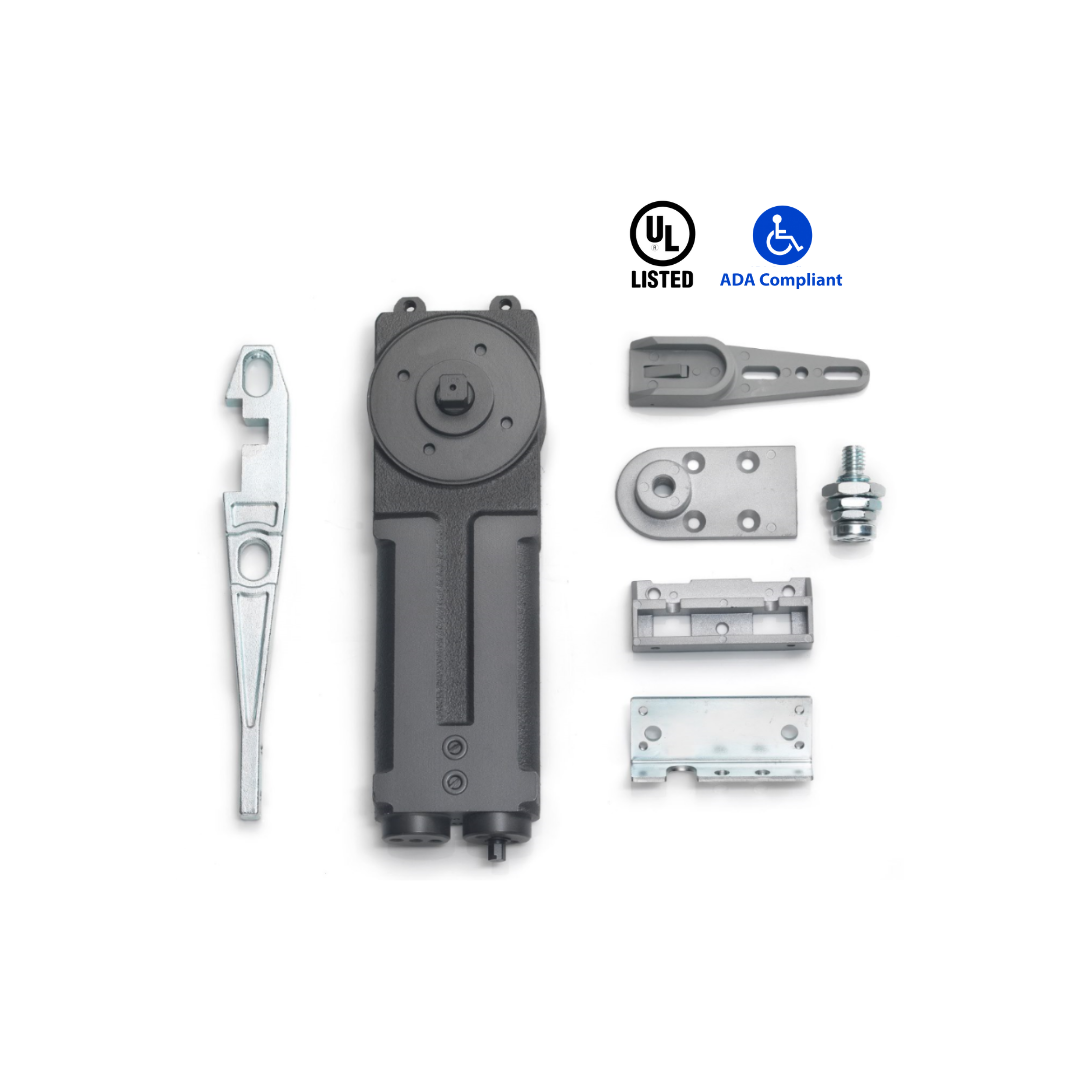

BHS Canada Adjustable Overhead Concealed Door Closer 2010 Series

BHS Canada Adjustable Overhead Concealed Door Closer 2010 Series

Product Specifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL 228 (Door Closers-Holders, With or Without Integral Smoke Detectors)
  • ADA Compliant: 1- 4
  • Suitable for single & double action door
  • Available for light, medium & heavy duty door
  • Adjustable closing & latching speed
  • Maximum door opening angle at 90 degree or 105 degree
  • Mechanical hold-open it 90 degree or 105 degree (optional upon request )
  • Concealed transom mount
  • Painted: Silver, black & other colors upon request
ITEM NO. HOLD-OPEN TYPE
DC-OHC-90-NHO 90〫degree (No hold open) Standards
DC-OHC-105-NHO 105〫degree (No hold open) Standards
DC-OHC-90-HO 90〫degree (hold open) Standards
DC-OHC-105-HO 105〫degree ( hold open) Standards
DC-OHC-90-HO-A 90〫degree (hold open) Adjustable
DC-OHC-105-HO-A 105〫degree ( hold open) Adjustable



DC-OHC-NHO (No hold open)
DC-OHC-HO (hold open)
DC-OHC-HO-A (hold open ) Adjustable

DC-OHC-90-NHO
