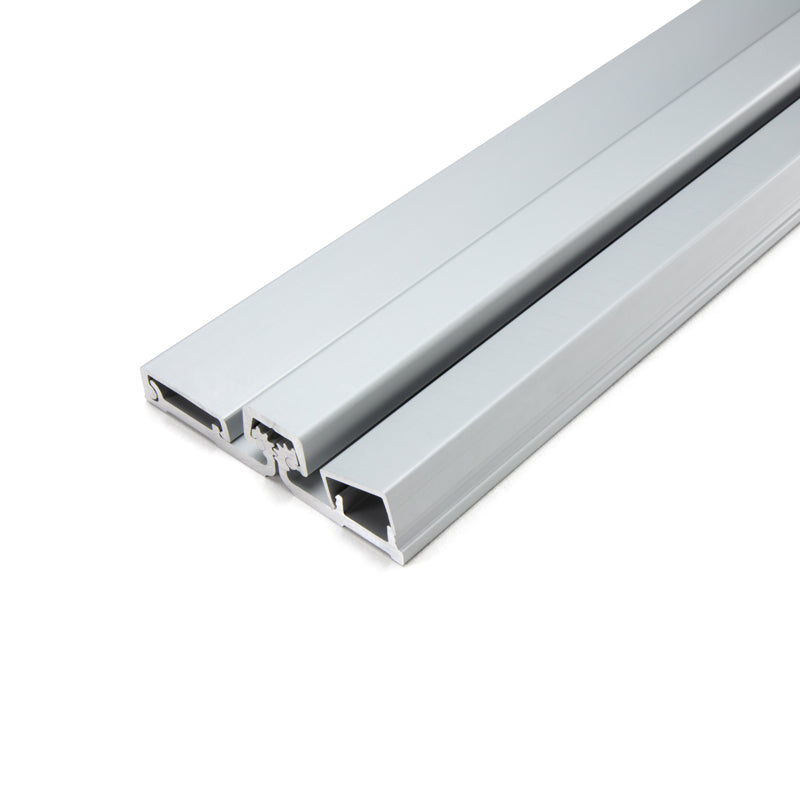

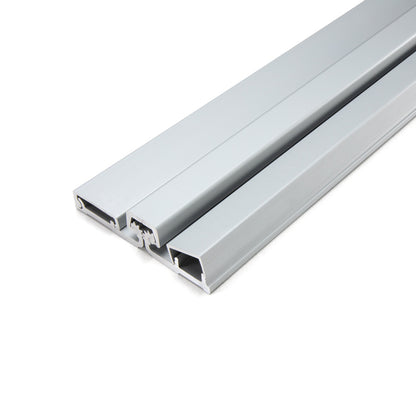

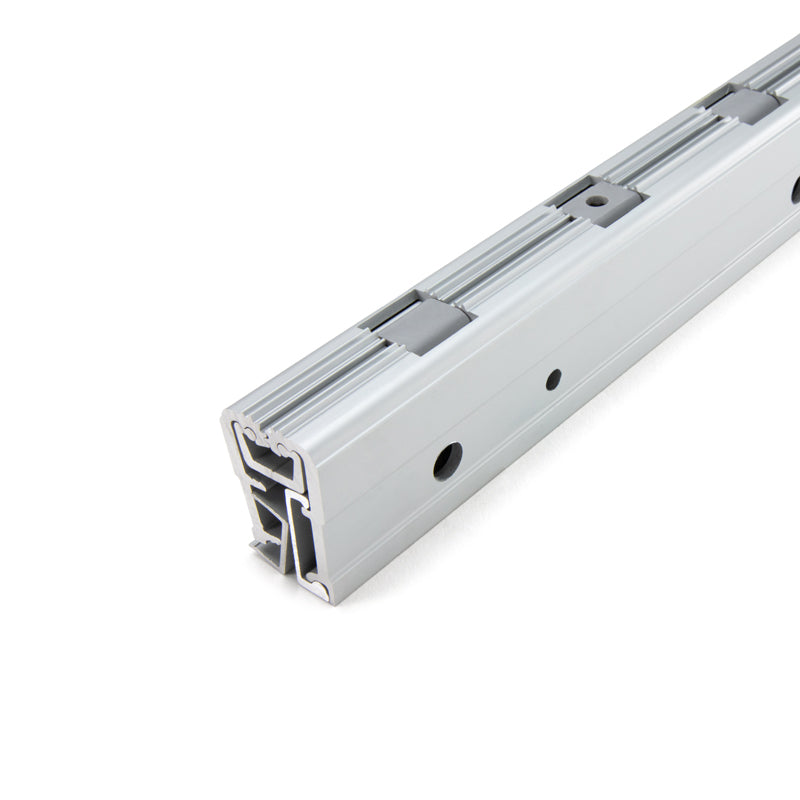

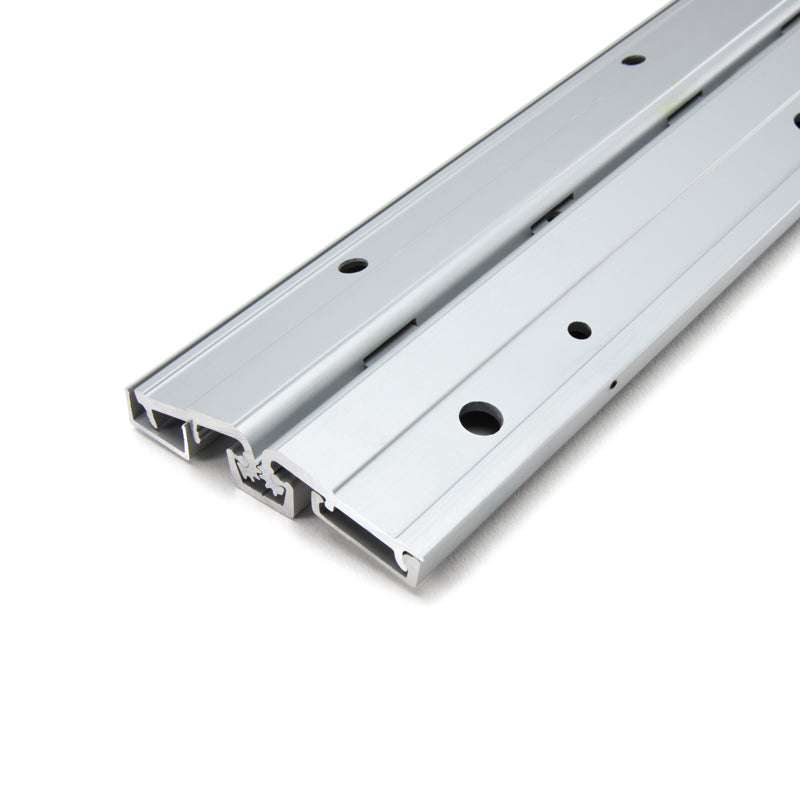

BHS Canada Aluminum Geared Continuous Hinge – Full Surface

GHFS30 FULL SURFACE

• Available in full mortise and surface mount
• 6063 T6 Aluminum alloy, with interlocking extrusions
• Non-handed design
• 83" or 95" length
• Standard duty with 16 thrust type self-lubricating concealed bearings per hinge
• Heavy duty with 32 thrust type self-lubricating concealed bearings per hinge
• High degree of security
• Anodized aluminum after machining
• Through bolt and machine screws fixing
• Templated hole patterns
• 10-year warranty
• Full surface continuous hinge
• Tamper resistant removable door leaf cover

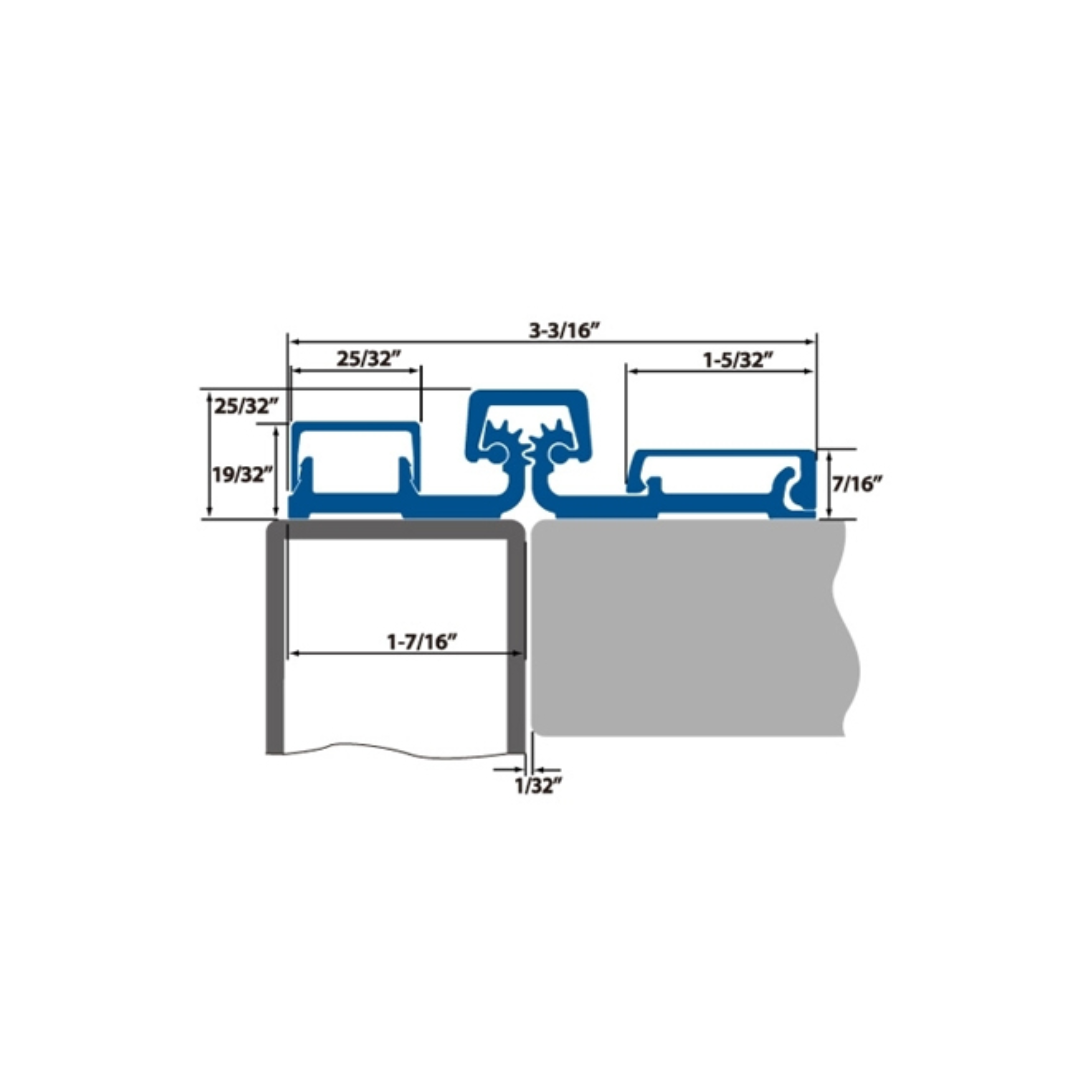

• 1/32" clearance between door and frame

  -STANDARD-


  ITEM NO.	FINISH
  GHFS30-83SD-AL	Aluminum
  GHFS30-83SD-DU	Duronodic
  GHFS30-95SD-AL	Aluminum
  GHFS30-95SD-DU	Duronodic


  -HEAVY DUTY-


  ITEM NO.	FINISH
  GHFS30-83HD-AL	Aluminum
  GHFS30-83HD-DU	Duronodic
  GHFS30-95HD-AL	Aluminum
  GHFS30-95HD-DU	Duronodic
  GHFS30-120HD-AL	Aluminum
  GHFS30-120HD-DU	Duronodic
